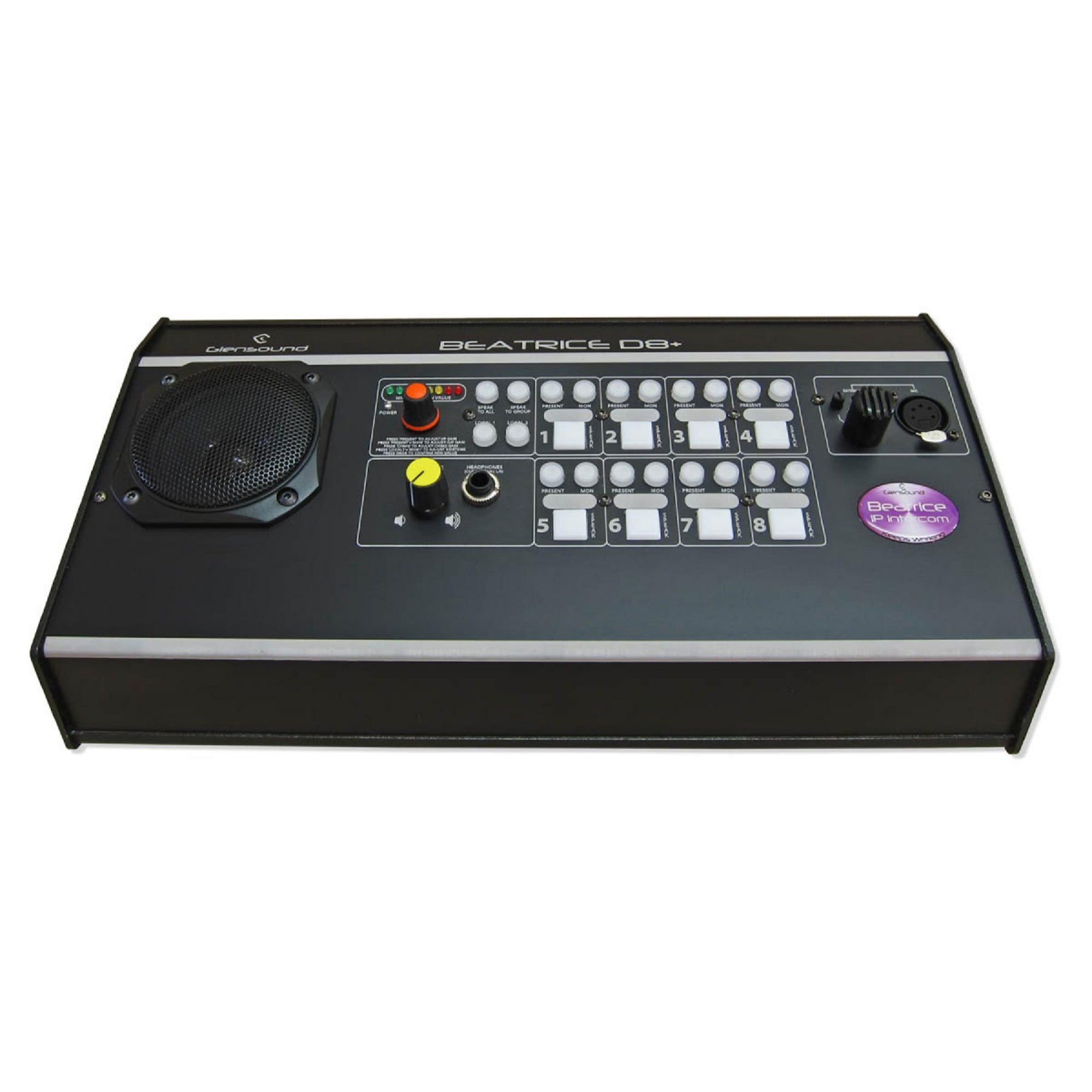

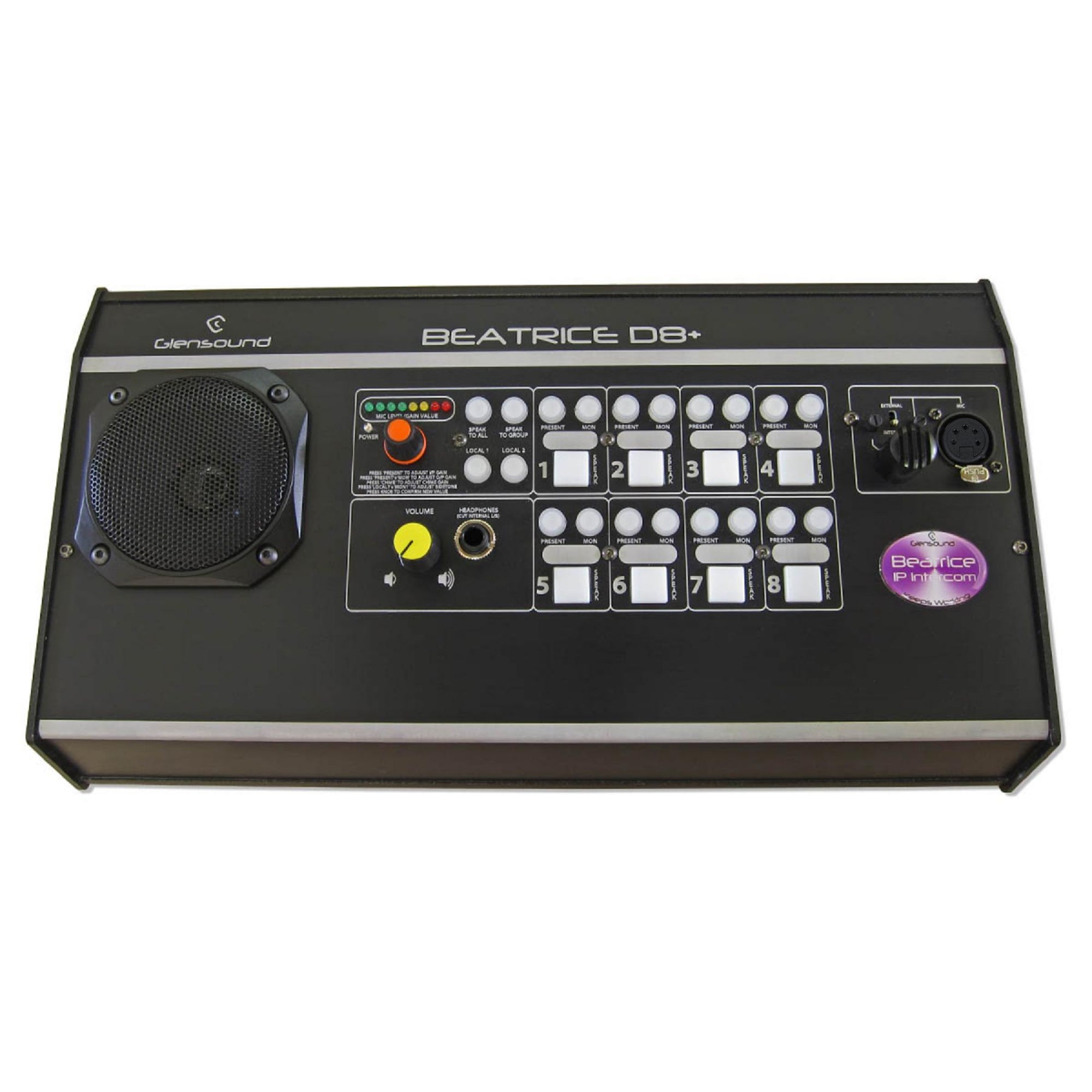

Glensound Beatrice D8+ - 8-Channel Dante / AES67 Audio Desktop Intercom with Analog I/O (5-Pin XLR Female)

  • Dale #:

    GLEN-BEATRICED8PLUS5F
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Beatrice D8+ is the fully featured Beatrice R8 in a desktop format. It offers 2 x analogue 4 wires, GPIO, local analogue LS output and expansion capability in addition to the standard features on the smaller Beatrice D8. Because the Beatrice D8+ started life as a 1RU rack it is quite physical... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Beatrice D8+ is the fully featured Beatrice R8 in a desktop format. It offers 2 x analogue 4 wires, GPIO, local analogue LS output and expansion capability in addition to the standard features on the smaller Beatrice D8. Because the Beatrice D8+ started life as a 1RU rack it is quite physically large and we would only recommend it if you specifically need the extra facilities mentioned above. For most customers requiring an 8 key desktop unit the smaller Beatrice D8 will be sufficient.

The Glensound BEATRICE D8+ is a versatile and fully featured 8 channel desktop intercom with crystal clear audio designed for broadcast,theatre and professional audio applications.

Features:

  • 8 Channels Of Intercom
    • One single user connected to the unit can listen and communicate with 8 separate locations on the network. Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.
  • Dante Routing & Partyline
    • Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 8 channels). Therefore Glensound have included an inbuilt fixed ratio 14 input 19 output mixer matrix with inputs and outputs connected directly to the Dante / AES67 network which allows for setting up partyline and complex group circuits.
  • Onboard Mic & External Mic Input
    • A good quality, clear sounding microphone amplifier designed for communication purposes is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances or a balanced XLR input for connecting external gooseneck microphones to. Twelve Volt Phantom power is also available and can be turned on/ off as required via an internal link.
  • High Output Intelligible Loudspeaker
    • What's the point of an intercom unit if the onboard speaker is so cheap that you can't understand what is being said to you? Glensound tried hundreds of different drive units before settling on the one used in the Beatrice D8+. We chose it because it had a much cleaner sound and better frequency response for vocals than any other speaker on the market that would fit in the desktop unit.
  • Mains or PoE Powered
    • An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice D8+. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World. The unit can also be powered via the Ethernet cable by standard PoE (Power over Ethernet) on either of the copper Ethernet ports. The PoE power can be supplied by an external PoE switch or a midspan power injector.
  • Redundant Twin Copper & Twin Fibre Ethernet Interface
    • When ultra reliable communications is needed for the utmost important jobs glitch free redundant network circuits can be set up using the primary and secondary Dante network ports. There are 2 copper Ethernet ports on Neutrik Ethercons and also 2 fibre Ethernet ports presented as SFP slots (SFP modules not included). Redundant networks can be set up across any of these ports. These ports can also be setup as a network switch.
  • GPIO
    • There are nine solid state relay outputs. One of these outputs is triggered when any speak key is on (useful for dimming external loudspeakers or red light controls), the other eight are triggered individually when their associated channel receives a call. In total there are 12 loop closure inputs. 10 of these control the talk keys (the 8 channels, talk to group & talk to all) and the other 2 provide internal & external LS cuts
  • Microphone Level Meter
    • An eight LED front panel multipurpose indicator is used to indicate the outgoing microphone level.
  • Channel Input and Output Gain Controls
    • For maximum flexibility gain can be applied to incoming audio signals and outgoing signals separately. A row of LEDs indicate the current gain setting when a channels input or output is being adjusted.
  • Call Function
    • A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with. A simple double tap of the speak key initiates a calling signal sent to the other party. The audio presence indicator flashes to indicate that you have been called. As well as the flashing LED at the receiving end of the call an audible 'beep' can be set to alert the user that an incoming call has been placed to them.
  • Monitor Selection
    • Each channel has an illuminated audio monitor switch. This allows the channels' incoming audio circuit to be routed to the headphones/ loudspeakers. Using these switches makes it easy for an operator to just monitor the desired incoming audio channels.
  • Presence Indication
    • A front panel illuminated red switch is used to indicate the presence of incoming audio on that channel. When audio is detected on the channel the switches internal red LED is illuminated, the red LED then stays on for a short period after the incoming audio stops to help the operator identify who has been talking to them.
  • Speaker Output
    • As well as the front panel internal loudspeaker a balanced analogue output is provided for connecting to an external powered loudspeaker
  • 4-Wire Connectivity
    • Two traditional analogue 4-wire circuits can be connected to two of the D8+'s intercom channels by utilising the versatile analogue inputs and outputs.
  • Local Input and Output Circuits
    • For increased versatility there are 2 local balanced analogue audio inputs and 2 local balanced analogue outputs. The inputs have input gain controls and presence detectors on them (just like an intercom's channel input) and are routed directly to two output channels on the Dante / AES67 network. The outputs are fed directly from two input channels from the Dante / AES67 network.
  • Mixer Matrix For Partyline
    • For setting up more complex groups and partyline circuits that could not be achieved via Dante controller or your AES67 router, an inbuilt fixed ratio mixer is supplied. It has 14 audio inputs direct from the network and 19 mix outputs to the network. 5 of the mixers have inbuilt automatic audio ducking circuits.
  • 2 units make 16 Channels
    • Two Beatrice D8+ desktops can be joined together by just a pair of digital S/PDIF cables making a 16 channel intercom unit, with groups, mics, speakers and other resources shared between the 2 units.

More +

Product Specs

NETWORK/ Dante Interface
Physical Interface2 off RJ45 Neutrik Ethercons and 2 off SFP slots
Audio Sample Frequency48kS/s
Transfer Rate1000Mbps
Dante ChipsetBrooklyn II (Note: suitable for acting as a master clock for a network incorporating many Ultimo Chipsets)
AES67 CompliantThe Audinate Brooklyn module used is AES67 compliant
AUDIO
Mic Gain Range+61 to +21dB
Phantom Power12 Volts (set by internal link)
Equivalent Input Noise-126dB (20Hz to 20kHz A weighted 150 Ohms)
Headphone Impedance32 - 1000 Ohms
Max Headphone Output Level+14dB into 600 Ohms
Headphone Connector6.35mm (1/4") TRS socket
Band Pass Filter50Hz to 15kHz
CALL CIRCUIT
Inband Calling Frequency20kHz
Amplitude-20dBFs
Duration Of Signal2 seconds
CompatibilityAll Glesnound Beatrice units and Studio Technologies
POWER
Mains Voltage100 to 240 VAC +/-10%
Mains Frequency50 to 60Hz
Power Over Ethernet (PoE)48 Volts
Consumption15 Watts
RedundancyMains and PoE are dioded together for glitch free redundancy
PHYSICAL
MechanicsAll aluminium with laser etched anodised panels and light textured black powder coated sides, base and lid
Size349 x 172 x 98 (W x D x H)
Weight1.87Kg (4.2lb)
Shipping Weight3.4Kg
Shipping Size61 x 41 x 17cms
Shipping CartonRugged export quality cardboard carton
GPIO
GPOSolid State Relays wired Normally Open & Normally Closed
GPILogic level pull down to ground to operate
INCLUDED ITEMS
HandbookPhysical A5 (Download .pdf also available)
Network Cable2 meter RJ45 to R45 cable
