Apogee Symphony I/O MkII SE - Flagship Audio Interface (Thunderbolt / 8x8 Mic Pre / 2x6 Analog)

Ships with the 2x6 Special Edition module with 2x6 analog I/O, 8x8 optical I/O, and 2x2 AES simultaneous I/O, and the 8x8+8MP Connect module with 8x8 analog I/O with mic preamps, 8x8 optical/AES I/O, and 2x2 SPDIF simultaneous I/O.

A new standard has been set. The Symphony I/O MkII Special Edition is Apogee's best-performing conversion…ever. With a greater dynamic range and a lower total harmonic distortion, your listening experience will forever change.

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee's flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. With its option card flexibility, Symphony I/O Mk II can provide direct connectivity to one of 4 different platforms – Thunderbolt™, Pro Tools® HD, Dante™+ Pro Tools® HD, or Waves SoundGrid network.

Features:

• Best AD/DA conversion of any Thunderbolt™ audio interface
• Up to 32 channels of modular analog I/O with optional mic preamps
• Best per-channel value of any interface in its category
• Choice of Thunderbolt™ (Mac), Pro Tools® HD (Mac/PC), Dante™+ Pro Tools® HD (Mac/PC, or Waves SoundGrid (Mac/PC) connectivity.
• Ultra-low latency performance – 1.35 ms with Thunderbolt and Logic Pro X
• Advanced Monitor Workflows featuring plug and play Atmos configuration
• All new, highly customizable Symphony Control software provides easy access to all I/O parameters
• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

Symphony I/O Mk II Thunderbolt delivers the full potential of Thunderbolt 2 performance with the lowest latency, unmatched CPU efficiency and 2 ports for connecting additional peripherals.

Symphony I/O Mk II Thunderbolt relies on Apogee's proprietary Thunderbolt driver, written from the ground up to offer unmatched performance and efficiency. When using Logic Pro X, latency has been reduced to an astounding 1.35 ms round-trip*, allowing you to monitor through your DAW, plug-ins included, simplifying your workflow and leveraging the power of your Mac. Even when your session's DSP demands require a higher buffer setting, Symphony I/O's ultra-low latency means no longer having to choose between power and speed. To accommodate different workflow preferences, Symphony I/O Mk II Thunderbolt features optional direct hardware monitoring through Symphony Control Software with 0.6ms of latency.

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee's flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. With its option card flexibility, Symphony I/O Mk II can provide direct connectivity to one of 4 different platforms – Thunderbolt™, Pro Tools® HD, Dante™+ Pro Tools® HD, or Waves SoundGrid network.

Devours Bits. Sips CPU.
Symphony I/O Mk II Thunderbolt's custom driver includes a revolutionary Direct Memory Access (DMA) engine to more efficiently read and write data directly to Mac memory independent of the Mac CPU. The DMA engine, running on Symphony I/O Mk II Thunderbolt's hardware logic chip, increases the driver's efficiency and provides the highest resolution signal possible to the DAC stage. This implementation allows the driver to crunch an enormous amount of data at an amazing speed, while making a very light demand on your Mac CPU. You benefit with lower latency, more plug-in power, and a transparent and encompassing listening experience.

Features:

• Streamlined new interface
• Easily adapt layout to fit your workflow
• Essentials control strip maximizes screen space
• FX send lets you use your DAW's effects with low latency monitoring
• Use your Mac's Built-in mic for new Talkback feature
• Output source button lets you toggle between mixes
• Create up to 16 Monitor Workflows in all popular multichannel configurations: Stereo to ATMOS 9.1.6.
• Instantly switch between Monitor Workflows from the Apogee Hardware Remote, Symphony Control software or the front panel touchscreen
• Mute,Solo and calibrate up to 16 speaker outputs
• Best AD/DA conversion of any Thunderbolt™ audio interface
• Up to 32 channels of modular analog I/O with optional mic preamps
• Best per-channel value of any interface in its category
• Choice of Thunderbolt™ (Mac), Pro Tools® HD (Mac/PC), Dante™+ Pro Tools® HD (Mac/PC, or Waves SoundGrid (Mac/PC) connectivity.
• Ultra-low latency performance – 1.35 ms with Thunderbolt and Logic Pro X
• Advanced Monitor Workflows featuring plug and play Atmos configuration
• All new, highly customizable Symphony Control software provides easy access to all I/O parameters
• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

Everything is under Control
Symphony Control software for macOS gives you comprehensive access to all features and functions of Symphony I/O Mk II Thunderbolt. Set gain levels (preamp modules only), manage routing, control output levels, set calibration, set-up multiple mixers and more. And with Symphony I/O Mk II Thunderbolt's new Monitor Workflows, you can effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs. Symphony Control also features compatibility with the new Apogee Control hardware remote.

Legendary Sound Quality
Apogee engineers have made it their passion to improve every new flagship product by using the latest in electrical components and designing optimized circuitry that often exceeds the expectations of the component manufacturer. This is the Apogee Advantage. Symphony I/O Mk II is the culmination of this 30 year commitment and raises the bar on all Apogee products before it with even better audio clarity and sonic transparency. In fact, when equipped with either the 8×8 or 16×16 modules, Symphony I/O Mk II outperforms all other multi-channel audio interfaces available for Pro Tools HD, network or Thunderbolt based systems, making it the flagship audio interface for the entire professional audio industry and the obvious choice for countless GRAMMY winning artists, producers, songwriters and engineers.

Input and Output flexibility
There is a Symphony I/O Mk II solution for everyone; the home studio, project studio, commercial recording studio and scoring stage. Choose from four base I/O configurations, 2×6, 8×8, 16×16, or 8×8 with 8 mic preamps and easily expand as your studio grows. With two module slots and the capacity for up to 32 inputs and outputs of A/D - D/A conversion per unit, Symphony I/O Mk II offers the best per-channel value of any interface in its category.

Ready for Immersive Audio
Mixing for Dolby Atmos and other immersive 3D formats is rapidly becoming an essential skill for the modern creator and engineer. As streaming services highlight immersive content and record companies require immersive audio deliverables, you may be asking yourself "how do I get started"? With Symphony I/O Mk II Thunderbolt's Monitor Workflows, you'll effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs.

The Magic is in the Modules
The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R+D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.

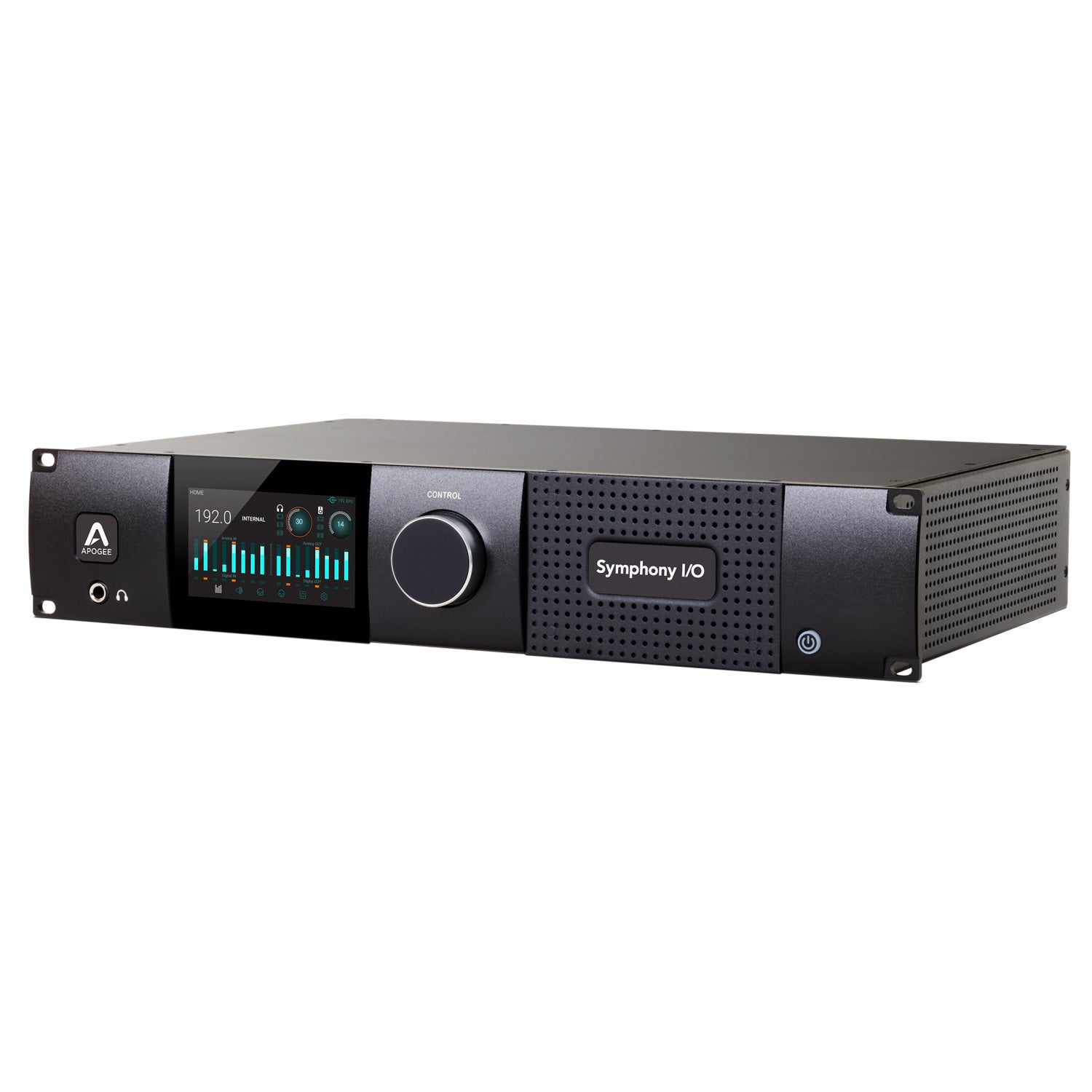

Front Panel Touchscreen
All of Symphony I/O Mk II's essential input and output settings can be accessed from the front panel touchscreen. Change your input selection, monitoring levels, mic pre gain or calibrate your Symphony I/O Mk II to match the levels of the other analog gear in your system.

A high-resolution TFT display delivers all the visual feedback critical for recording and monitoring. Without looking at your computer, Symphony I/O Mk II lets you see metering for up to 64 channels of I/O, 32 IN x 32 OUT – signal levels, polarity, muting, phantom power and Soft Limit.

Stay Cool with Dynamic Temperature
Symphony I/O Mk II features advanced controls to keep the unit running at an ideal temperature, ensuring the highest level of performance and reliability. The new temperature controls can be accessed form the touch screen and control software and are complemented by an improved fan and chassis ventilation design, which allows adequate component cooling to occur quietly.

Symphony Control Software
Symphony Control software for macOS gives you comprehensive access to all features and functions of Symphony I/O Mk II Thunderbolt. Set gain levels (preamp modules only), manage routing, control output levels, set calibration, set-up multiple mixers and more. And with Symphony I/O Mk II Thunderbolt's new Monitor Workflows, you can effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs. Symphony Control also features compatibility with the new Apogee Control hardware remote.

Control Hardware Remote
Symphony Control also provides compatibility between Symphony I/O Mk II audio interfaces and the Apogee Control hardware remote accessory. Apogee Control gives you instant access to input and output levels using the large Symphony-inspired Control knob and 3 control knob focus buttons, plus direct access to a wide range of software functions using the 8 user-configurable hardware buttons. Apogee Control hardware remote connects directly to your Mac using the included USB cable.
